New Era

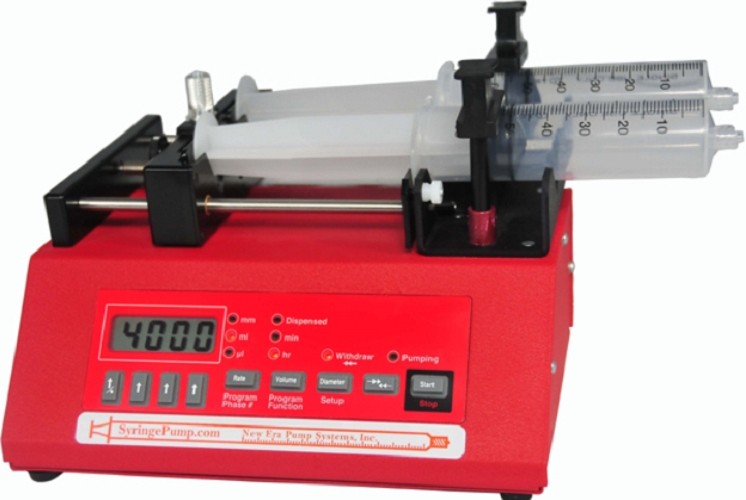

08. New Era NE-4002X High Resolution Microfluidics Double Syringe Pump

08. New Era NE-4002X High Resolution Microfluidics Double Syringe Pump

SKU:NE-4002X

Same description and all the features of the NE-1002X plus... Holds 2 syringes up to 60 mL. 140 mL partially filled. Advance Per Step: 4.185267857 Nanometers Dispensing accuracy of +/- 0.5% and reproducibility of +/- 0.2% Note: NOT FOR CLINICAL USE ON HUMANS. Click to Watch Ne-4000 Video

Download Adelab Scientific Email Order Form

Please use this form to place your orders. Simply copy and paste items from our Consumable Price List or Clearance Sale List into the form, then email it back to info@adelab.com.au.

👉 Download Order Form

View full details

More: Info


Accepts 2 different syringes from the smallest size available up to 60 mL. A 140 mL syringe can be filled up to 120mL. 2 different sized syringes can be used for proportional infusion. NE-4002X pumping rate as low as .008 nL/hr with a 0.5 μL syringe or as high as 1555 μL/min with a 60 mL syringe.

  • Built for Automation Operates stand-alone or from a computer Infuses and withdraws.
  • Applications range from simple infusions to complex pumping programs.
  • Programmable preset protocols.
  • Program up to 41 pumping phases: change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer.
  • RS-232 and TTL logic control interfaces.
  • Firmware and Program Memory Upgrade Options: X2 Upgrade: Increases the number of programmable phases from 41 to 340 and increases the max RS-232 baud rate to 38,400.
